SumcheckPIM: An Efficient HBM-Based PIM Architecture for Linear Complexity Zero Knowledge Proofs

Abstract

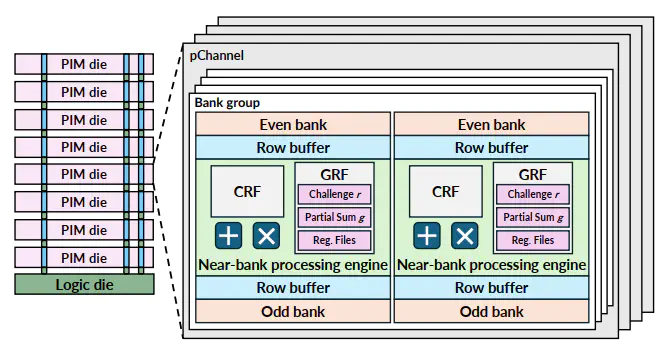

Zero-knowledge proofs (ZKPs) are emerging as a core technology for privacy-preserving computation. Despite steady progress in protocol and algorithm design, generating these proofs remains computationally intensive, driving growing interest in hardware acceleration for kernels such as number-theoretic transform (NTT) and multi-scalar multiplication (MSM). Among them, the sumcheck protocol offers a compelling alternative with O(n) prover complexity compared to O(nlog n) for NTT-based approaches, yet our analysis reveals its execution is fundamentally memory-bound, with severely underutilized compute resources. This characteristic demands a memory-centric acceleration strategy, in contrast to compute-centric approaches of prior work. To this end, we propose SumcheckPIM, an HBM-based processing-in-memory architecture optimized for the sumcheck protocol. SumcheckPIM introduces 256-bit modular arithmetic units at the bank level to support real-world field sizes, a Fiat-Shamir unit on the logic die for global accumulation and challenge generation, and an inter-bank processing engine enabling protocol completion without host interaction. We also propose a DRAM-aware folding scheme that maximizes row buffer locality through row packing and bank ping-ponging. Our design achieves this while maintaining JEDEC compliance with minimal modifications to existing commercial HBM-PIM architectures. We demonstrate that SumcheckPIM delivers both high performance and efficiency, achieving 5.3× –13.3× and 334.2× –361.1× speedup over GPU and CPU baselines, respectively.
